Electronic Control Module Potting and Encapsulating Compounds

The Best Potting and Encapsulating Products for Control Modules

Epic Resins laboratoryEpic Resins has a full line of electronic potting compounds designed to protect control modules from the elements, both chemical or natural. These electronic potting resins are excellent for encapsulating a variety of small, sensitive electronics. Low viscosity potting compounds easily reach the intricate, detailed parts of control modules and other similar electronic devices. Sensitive components are well protected and held stable with any of our high-quality electric potting compounds. There are ways to remove epoxy for your potting, too, should you need to repair or modify an electric component.

Our epoxy and polyurethane encapsulants are used in environments that require good thermal shock and vibration resistance, as well as resistance to harsh chemicals. We manufacture custom formulated epoxy resins for a wide range of applications. We send in many of our potting materials to be UL rated and certified for enhanced fire resistance. Whether you are looking for a thermally conductive potting compound for a control module or a custom potting resin for a unique electrical application, Epic Resins can help.

Epic Resins has decades of experience in specialty epoxy and polyurethane resins. More than just suppliers, we work with clients to streamline their manufacturing production process, while also offering the option of custom formulations based on their specific needs. The consistency and value we provide is unmatched in the industry.

Order Control Module Potting


Epic S7310 - 2 Component Urethane Potting Compound

Timer encapsulated with polyurethane potting compound

Epic S7310 is a black two-component urethane potting compound that features:

  1. Low viscosity
  2. 1:1 volumetric mix ratio
  3. Good resin/hardener compatibility
  4. Good durometer stability after exposure to elevated temperatures.

Based on thermally aging data, Epic S7310 will work in the -55°C to 125°C operating range, providing stress relief to sensitive surface mount components.

Epic S7475 - 2 Component Polyurethane Potting Compound

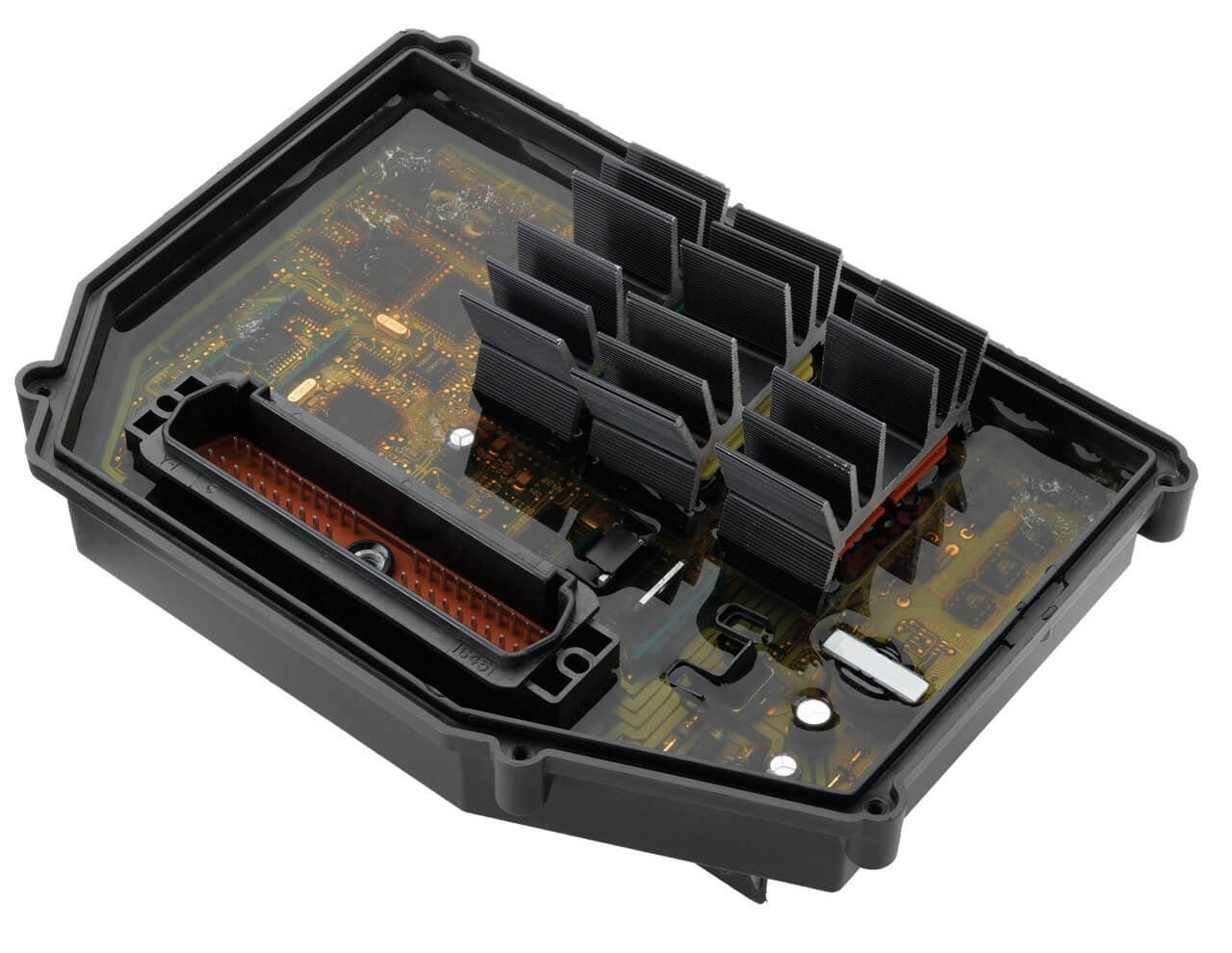

Control module potted with polyurethane encapsulant

Epic S7475 is a two-component polyurethane compound for potting ECM’s and a wide variety of electronic devices. The low mixed viscosity of the S7475 allows the material to flow into intricate areas under printed circuit boards and other tight tolerance areas. It has a 4:1 by volume mix ratio that allows the system to be very adaptable for meter mix and dispense processing. The very low hardness of S7475 in combination with the low Tg provides excellent flexibility, allowing delicate SMD's to expand and contract during thermal cycling and thermal shock.

S7475 has shown extremely low weight loss at 130°C. S7475 is UL 94 V-0 recognized at 4.8 mm and is RoHS compliant.

Epic S7325 - Aromatic Urethane Potting Compound

Urethane potting compound for electronic circuitry

Epic S7325 is a low hardness aromatic urethane potting compound. S7325 has been designed with a convenient 1:1 by volume mix ratio.

Epic S7325 is especially useful for applications requiring removal of the potting material for easy access to circuitry and components so that repair can be performed on expensive control modules. S7325 has a proven track record of performance in under the hood automotive applications.

Epic S7351 - 2 Component-Room Temperature-Polybutadiene Based Polyurethane

Epic S7351 is a two-component, room temperature cure, polybutadiene based polyurethane potting compound. Epic S7351 was specifically formulated for electronic marine modules (EMM's) and is also an excellent candidate for electronic control modules (ECM's). Due to its low hardness and flexibility, S7351 will not exert stress on delicate surface mounted devices (SMD's) on printed circuit boards (PCB's) when exposed to extreme thermal cycling typical of marine and automotive electronics applications. This polyurethane potting compound is an excellent alternative to rigid systems that do not allow expansion and contraction of delicate components, causing failures. Also, due to the polybutadiene chemistry used in this formula, the product provides excellent high-temperature properties up to 125°C and much-improved chemical resistance.

Epic S7391-03 - 2 Component Polyurethane Gel Potting Compound

Epic S7391-03 is a two-component polyurethane gel potting compound designed for potting sensitive electrical components. Epic S7391-03 features a convenient 1:1 volumetric mix ratio as well as a very low mixed viscosity. Epic S7391-03 encapsulating urethane makes an excellent replacement for more expensive silicone potting materials.

Epic S7287 - 2 Component Polyurethane Potting Compound

Epic S7287 is a low cost, two-component polyurethane potting compound that is used in various electrical and electronic potting applications. Epic S7287 features a low viscosity which imparts good flowability for the ease of potting of parts. Epic S7287 is recommended for products that require the encapsulating compound to flow into intricate and tight tolerance designs.

Epic S7302 - Polyurethane Room Temperature Cure System

Epic S7302 is a tough, medium durometer, polyurethane potting and encapsulating material. S7302 is a room temperature cure system that may be accelerated by increased temperatures. S7302 is suitable for applications that require operating temperatures between 110°C to 120°C. Epic S7302 exhibits good adhesion to many types of thermoplastic cases, without the need for surface preparation. Epic S7302 is a great product for applications that will see the vibration, thermal cycling, and/or thermal shock.

Custom Resin Formulations for Control Modules

Can't Find Exactly What You Want? We'll Customize our Formulas to Meet Your Needs

From cure times to hardness and viscosity, Epic Resins has the capability to adjust our formulas to better match the resin requirements of your control module or electronic component part. Our technicians work with each client to get the proper formulas, then thoroughly test the product in simulated environments to best match your needs.

Why Epic Resins?

Contact Epic Resins for a high-quality potting resin to protect and support control modules and other electronic applications.

Get a Resin Quote Now

Epic Resins epoxy resin formulations and applications

Epoxy Resin Materials

  • 1 component
  • 2 component
  • Polyurethane potting compounds
  • Electrical potting compounds
  • Thixotropic epoxy compounds
  • Anhydride cure
  • Battery potting compounds
  • Adhesives and bonding materials
  • Polyurethane elastomer
  • Flame Retardant Polyurethane
  • Electronic encapsulation
  • Low hardness polyurethane
  • Aliphatic polyurethane compound
  • UL-Recognized potting compound
  • Thermally conductive epoxy

Benefits of polyurethanes over silicone potting

  • Lower cost of materials results in a more economical polymer
  • Better bond strength to substrates and cases
  • Durable and efficient in optimal operating temperatures range
    • Low temperature: -60°
    • High temperature: 150°C
  • Higher chemical resistance to more chemical compounds
  • Reduced water vapor permeability increases water-resistance of sensitive components
  • More flexible formulation allows polyurethanes to be formulated soft or rigid
  • More strength, elongation, and abrasion resistance
  • Reduced outgassing from material
