Polyurethane compounds and epoxy resin for filter manufacturers

We are a leader in meeting the needs of the filtration market. Our epoxy resin and polyurethane products endure chemical exposure and temperature extremes. From fungus-resistant polyurethanes for pool filters to heat-resistant epoxy resins for the aerospace market, we have a solution to your filtration problem.

Epoxy and Polyurethane Resins for Filter OEMs

We specialize in formulating epoxy and polyurethane resin solutions for the filtration industry. Using technology-proven chemistry in our state-of-the-art lab, our chemists work with you to develop a product specific to your needs. Whether you’re an automotive manufacturer looking for a chemical resistant filter adhesive, an OEM supplier seeking an air filter potting compound or a spa equipment supplier wanting a filter end cap material, we can formulate it.

Contact us today for material recommendations.

Higher Standards = Quality Products

Our management systems are accredited with ISO certifications 9001 and 14001. We can tailor any epoxy or polyurethane to your application or production needs. Characteristics such as thermal conductivity, viscosity, and hardness can all be modified.

Filter Applications Capabilities

ToughPleat is a two-component polyurethane series for demanding molded filter end cap applications. This formulation is excellent for filters subjected to constant pulsing and/or pressure drops. High tear resistance prevents the filter from being damaged in the installation or removal process.

Features Include: High tensile strength, High elongation, Excellent tear resistance, Easy to dispense, Reduced WIP time

Designed for applications where good thermal conductivity and low viscosity at 50°C are special criteria. Works well in high-temperature applications. Epic 0161 is also chemical resistant and adheres to a variety of end-cap substrates.

Viscosity 65,000 – 70,000 cps @ 25°C, 20 RPM
Hardness 87 – 91 (1 hour @ 135°C) Shore D
Application End-Cap Adhesives

The Epic S7293 series features good tear propagation and low weight loss after 1,000 hours @ 275°F. Outstanding for moldable end-cap applications requiring tough tear-resistant material and fast gel time for the rapid cycle of parts.

Mixed Viscosity Application Dependant
Hardness 65 – 75 Shore A
Application Moldable End-Cap

Epic 0174 is suitable for high-temperature applications such as filter end-cap adhesion applications. Has good chemical resistance, bonds to a variety of substrates and maintains physical integrity in applications up to 350˚F.

Viscosity 30,000 – 50,000 cps @ 25°C, 20 RPM
Hardness 75 – 95 Shore D @ 110°C
Application End-Cap Adhesives

Formulated using the same chemical backbone as filter adhesive Epic S7292. Has some flow characteristics. Does not sag which allows the operator to pot both end-caps and apply the seam without the material running, reducing work in process (WIP). Outstanding for hydraulic filter applications.

Mixed Viscosity 35,000 – 45,000 cps @ 25°C, 20 RPM
Hardness 90 – 93 Shore D
Application End-Cap Adhesive/Side Seam Adhesive

The Epic S7350 series has a fast gel time to provide rapid cycling of parts. Good moisture tolerance in uncontrolled production environments reduces waste. Designed to provide superior adhesion to a variety of metals.

Mixed Viscosity Application Dependent
Hardness 79 – 83 Shore D
Application End-Cap Adhesives

Epic S7445 is formulated with a low viscosity for increased flow when used in the manufacture of HEPA/Air filters. Can be used on wood or metal substrates and provides a fast cure with a low exotherm.

Mixed Viscosity 700 – 1,000 cps @ 25°C, 20 RPM
Hardness 83 – 88 Shore A
Application HEPA/Air Filter Adhesive

The Epic S7463 series is a two-component polyurethane with a convenient 4:1 volumetric mix ratio and self-leveling viscosity. The S7463 series adheres to many plastic and metal substrates and is a great plastisol substitute.

Mixed Viscosity Application Dependent
Hardness 95 – 100 Shore A
Application End-Cap Adhesives

Epic S7381 is a high hardness polyurethane casting material for use in filter end-cap applications. The high hardness and rapid cure allow for the fast processing of chemically-resistant end-caps.

Mixed Viscosity 2,900 – 3,900 cps @ 25°C, 20 RPM
Hardness 80 – 85 Shore D
Application End-Cap Adhesives

Epic S7403 is a two-component 100% reactive epoxy adhesive with chemical resistance to automotive fluids. Has a short Gel Time for a fast turnover of parts. Suitable for hydraulic filter end-cap applications and other chemically demanding adhesive applications.

Mixed Viscosity 9,000 – 12,000 cps @ 25°C, 20 RPM
Hardness 85 – 90 Shore D
Application End-Cap Adhesives

The Epic RM2007 is a medium hardness polyurethane possessing a fast cure and a biocide to inhibit fungal growth on filters used in the pool and spa industry.

Mixed Viscosity 800 – 1,100 cps @ 25°C, 20 RPM
Hardness 73 – 78 Shore A
Application Moldable End-Cap

Epic S7292 is an epoxy filter adhesive suitable for filter end-cap application in high-temperature chemicals. Maintains its hardness at 200˚F. Offers good chemical resistance and bonds to a variety of plastic and metal materials.

Mixed Viscosity 6,500 – 7,500 cps @ 25°C, 20 RPM
Hardness 90 – 92 Shore D @ 25°C
Application End-Cap Adhesives

The Epic S7479 is a moderately high hardness polyurethane with a quick gel time and a biocide to inhibit fungal growth for use in the pool and spa industry.

Mixed Viscosity 800 – 1,200 cps @ 25°C, 20 RPM
Hardness 73 – 77 Shore D
Application Moldable End-Cap

The Epic S7455 series possesses rapid cure and high hardness to allow for the fast processing of chemical resistant end-caps. Epic S7455 series adheres well to various metal and plastic end-cap materials, including Nylon.

Mixed Viscosity 1,800 – 2,800 cps @ 25°C, 20 RPM
Hardness 80 – 85 Shore D
Application End-Cap Adhesives

Epic RM2011 is a tear-resistant moldable end-cap material. A quick gel time allows for fast processing of end-caps and medium hardness enables the filter to act as its own gasket.

Mixed Viscosity 1,200 – 1,600 cps @ 25°C, 20 RPM
Hardness 50 – 55 Shore A
Application Moldable End-Cap

Adhesives and Potting Compounds for Filter Manufacturing

Since 1958, Epic Resins has been manufacturing quality resin compounds for a wide range of industries. We formulate compounds for applications such as:

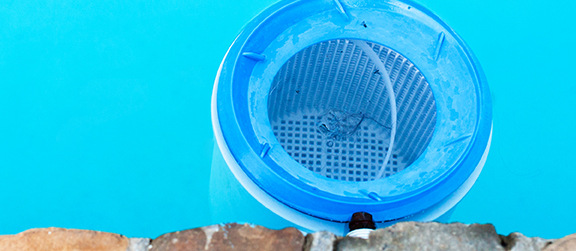

Pool and Spa Filters

Full line of chemically-resistant polyurethane end cap materials for the spa, pool, and submersible pump industries.

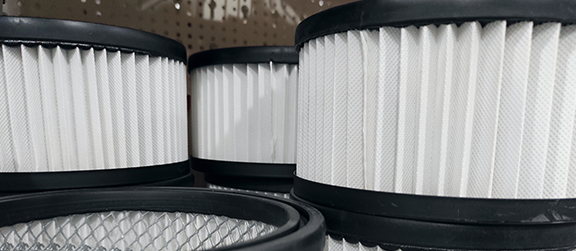

Air & HEPA Filters

Cost-effective epoxy resin and polyurethane filter adhesives, potting compounds and end cap materials that withstand shock, vibration and temperature extremes.

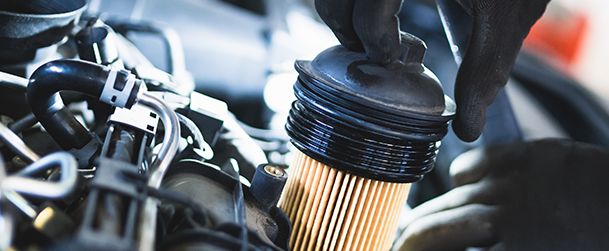

Oil & Gas Filters

Chemically-resistant epoxy resins and polyurethanes for use in filters designed to separate contaminants present in oil, gas, greases, and coolants. We offer an extensive line of products for molded end-caps, potting and casting materials, seam sealing and end caps adhesives.

Epoxy Resin and Polyurethane Filtration Properties

We can adapt any of our epoxy resins or polyurethanes to meet the specifications of your industrial filtration application. Our products feature modifiable properties, including electrical, chemical and heat resistance, and adhesion rates. We add thermosetting polymers to our filtration adhesives to ensure chemically-resistant resin combinations are available. Thermosetting polymers allow our products to maintain adhesive and bonding functionality while exposed to chemicals in a high-temperature setting. Thermoset is set once cured, meaning the chemical reaction has occurred and cannot be altered by outside forces. Our epoxy and polyurethane filtration adhesives remain secure in any circumstances.

Benefits of Chemically Resistant Resins:

  • Reduces exposure and flammability, as compared to powder coatings
  • Fast curing time: bonds in as little as 5 minutes, depending on the curing temperature
  • Resistant to thermal shock: -40°F to 400°F (-40°C to 204°C)
  • Low water absorption with favorable thermal conductivity
  • Can adhere to metals, glass, wood, stone, and some plastics
  • Works in elevated temperatures
  • Works effectively with coolants, gas, lubricants, and oils
Contact our experts for a solution today.
